Rear Gate Glass: Installation

NOTE: Use the markings on the glass to apply adhesive and primer, and to install the dam rubber - rear gate and the spacer - rear gate.

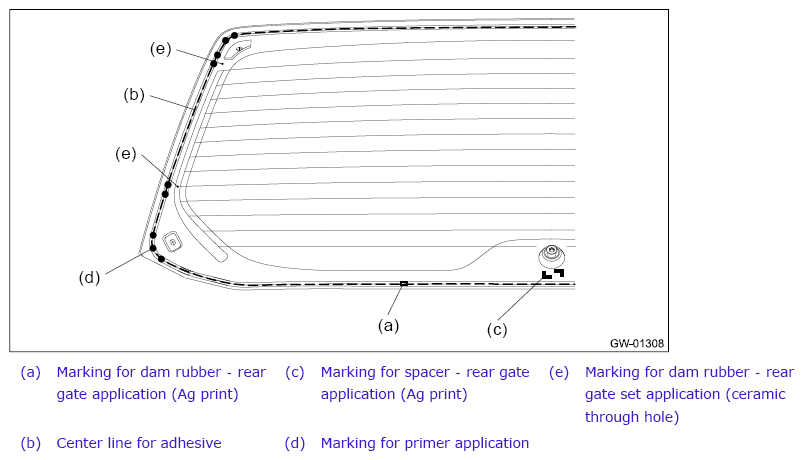

Fig 1: Identifying Adhesive And Primer Applying Area On Rear Gate Dam Rubber And Rear Gate Spacer

Courtesy of SUBARU OF AMERICA, INC.

Fabricate the cartridge nozzle tip as shown and set the sealant gun with the adhesive.

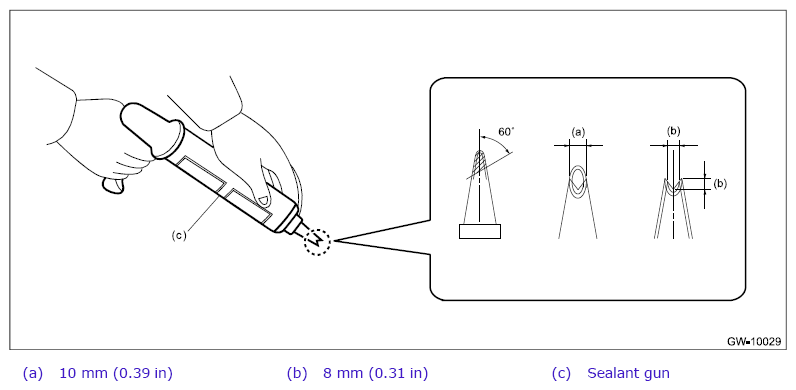

Fig 2: Fabricating Cartridge Nozzle Tip
Courtesy of SUBARU OF AMERICA, INC.
Smoothen and clean the adhesive surfaces of the glass - rear gate and body using the same procedures as for the glass - front window. Ref. to GLASS/WINDOWS/MIRRORS>Windshield Glass>INSTALLATION .
Attach the rubber - rear gate to the glass - rear gate.
Attach the dam rubber - rear gate to the glass - rear gate.

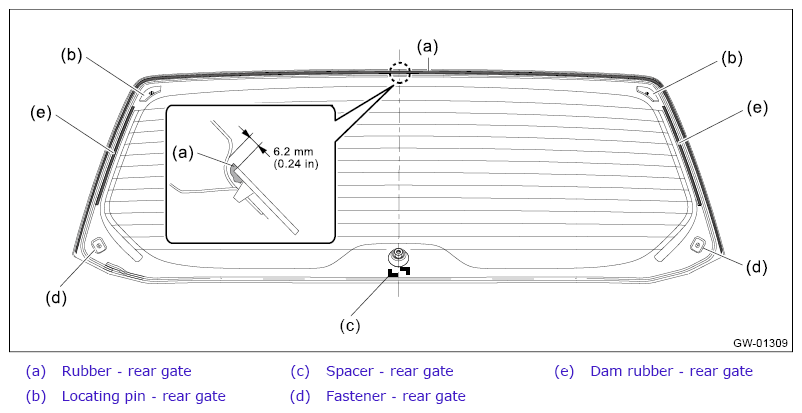

Fig 3: Attaching Dam Rubber - Rear Gate To Glass - Rear Gate
Courtesy of SUBARU OF AMERICA, INC.
Install the glass - rear gate.
1. Apply the primer to the adhesive surface of glass - rear gate side and body side using sponge.
  CAUTION: Do not apply primer to adhesive.
2. Apply adhesive to the glass - rear gate end back surface.

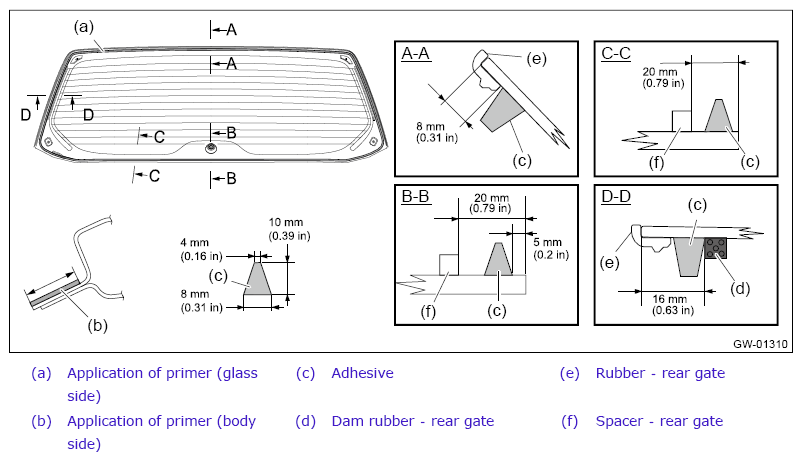

  Fig 4: Applying Adhesive To Glass - Rear Gate End Back Surface
  Courtesy of SUBARU OF AMERICA, INC.
3. Attach the dam rubber - rear gate to the glass - rear gate.
4. Insert the locating pins - rear gate into the rear gate panel holes, and install the fastener - rear gate to the fastener on the body side, and then install the glass - rear gate.
5. Lightly press the entire perimeter of the glass - rear gate for tight fit.
6. Make flush the adhesive surface jutted out using spatula.
After completion of all work, allow the vehicle to stand for about 24 hours.
NOTE:
- When opening/closing the door after the glass - rear gate was bonded, always lower the glass assembly - door first, and then open/close it carefully.
- Move the vehicle slowly.
- For minimum drying time and vehicle standing time before driving after bonding, follow instructions or instruction manual from the adhesive manufacturer.
Connect the rear defogger connector.
Install the motor assembly - rear wiper and the arm assembly - rear wiper.
Tightening torque:

Motor assembly - rear wiper and arm assembly - rear wiper: Ref. to WIPER AND WASHER SYSTEMS>General Description>COMPONENT>REAR WIPER .
Install the trim panel - rear gate. Ref. to EXTERIOR/INTERIOR TRIM>Rear Gate Trim>INSTALLATION .
Connect the battery ground terminal. Ref. to NOTE>NOTE>BATTERY .
After curing of adhesive, pour the water on external surface of vehicle to check that there are no water leaks.

NOTE: When a vehicle is returned to the user, tell him or her that the vehicle should not be subjected to heavy impact for at least three days.
