Outer Mirror Assembly: Disassembly

CAUTION:

When removing the mirror - repair, be careful not to damage the back surface of mirror - repair with a flat tip screwdriver.
When installing the mirror - repair, insert the connector and clip securely.

Operate the remote control mirror switch to face the mirror - repair upward.
Disconnect the ground cable from battery.
Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. Ref. to NOTE>NOTE>BATTERY .
NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
Remove the mirror - repair.

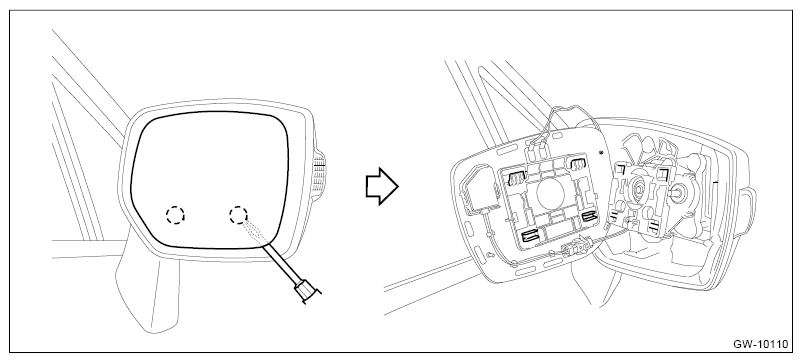

1. Using a flat tip screwdriver, release the clip, and slide the mirror - repair downward to remove.

  Fig 1: Releasing Clip Using Flat Tip Screwdriver
  Courtesy of SUBARU OF AMERICA, INC.

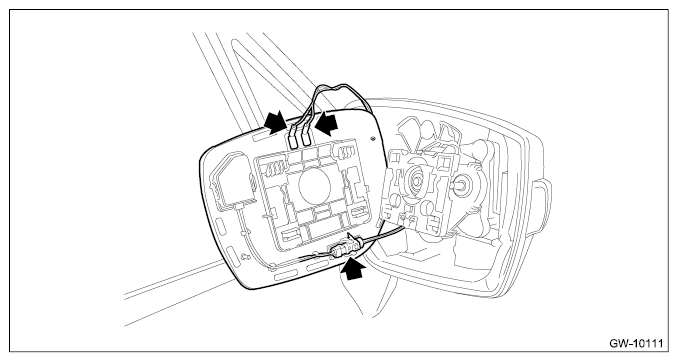

2. Disconnect the mirror heater connector. (Model with mirror heater and Blind Spot Detection/Rear Cross Traffic Alert system)

  Fig 2: Locating Mirror Heater Connector
  Courtesy of SUBARU OF AMERICA, INC.

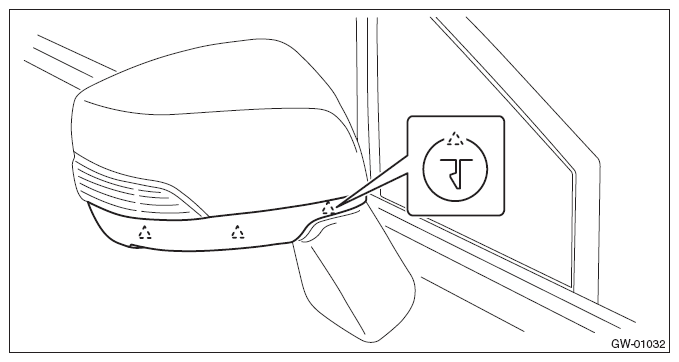

Release the claws, and then remove the cover - cap outer mirror lower.

Fig 3: Releasing Cover - Cap Outer Mirror Claws
Courtesy of SUBARU OF AMERICA, INC.

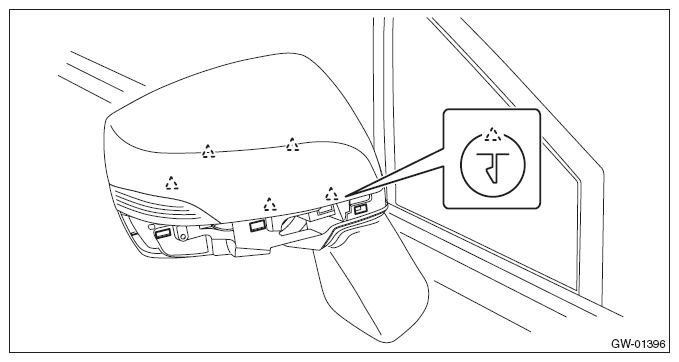

Release the claws, and then remove the cover - cap outer mirror.
CAUTION: Be careful not to apply excessive force when removing the cover - cap outer mirror, as the lower hooks may become damaged.

Fig 4: Releasing Cover - Cap Outer Mirror Claws
Courtesy of SUBARU OF AMERICA, INC.
Remove the light assembly - side turn mirror.
1. Remove the screws and pull out the light assembly - side turn mirror to the front of the vehicle.
2. Disconnect the connector and remove the light assembly - side turn mirror.
