Front Regulator and Motor Assembly: Removal

CAUTION: Refer to "CAUTION" of "General Description" before handling the airbag system components. Ref. to AIRBAG SYSTEM>General Description>CAUTION .
  1. Operate the power window switch to close the front door glass.
  2. Turn the ignition to OFF.
  3. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  4. Remove the trim panel - front door. Ref. to EXTERIOR/INTERIOR TRIM>Door Trim>REMOVAL>FRONT DOOR .
  5. Remove the sealing cover - front door. Ref. to EXTERIOR BODY PANELS>Front Sealing Cover>REMOVAL .
  6. Remove the glass assembly - front door. Ref. to GLASS/WINDOWS/MIRRORS>Front Door Glass>REMOVAL .
  7. Remove the regulator and motor assembly - front.
    1. Disconnect the motor - front connector.
    2. Remove the bolts, and then remove the regulator and motor assembly - front.

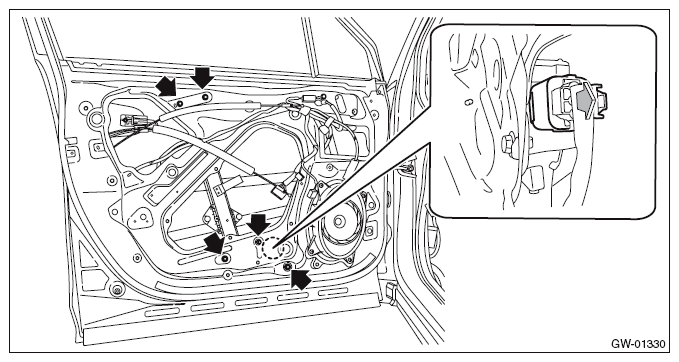

    Fig 1: Locating Regulator And Motor Assembly - Front Bolts
    G09484448Courtesy of SUBARU OF AMERICA, INC.
