Seat Heater Unit - Rear

  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the trim panel - rear apron RH. Ref. to EXTERIOR/INTERIOR TRIM>Rear Quarter Trim>REMOVAL .
  3. Remove the bolt, disconnect the connector and remove the seat heater unit - rear.

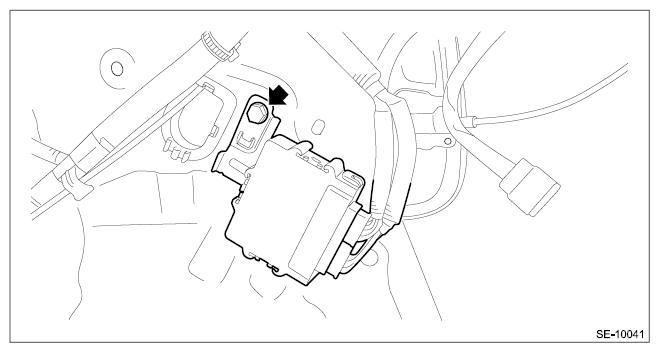

Fig 1: Locating Bolt And Seat Heater Unit - Rear
G11268887Courtesy of SUBARU OF AMERICA, INC.
