Remote Control Back Rest Actuator

  1. Remove the rear seat backrest. Ref. to SEATS>Rear Seat>REMOVAL .
  2. Remove the remote control back rest actuator from the rear seat backrest.
    1. Disconnect the connector.
    2. Remove the screws to remove the remote control back rest actuator.

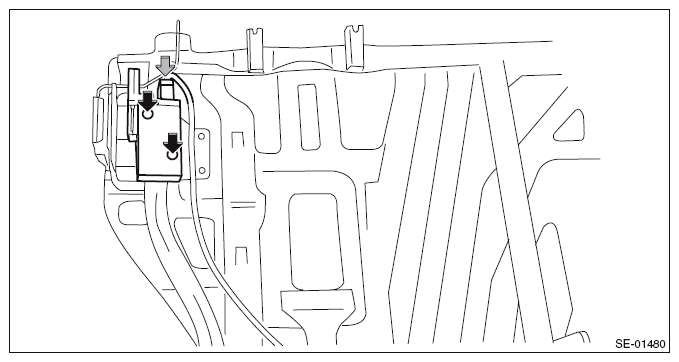

Fig 1: Locating Remote Control Back Rest Actuator Screws
G09484620Courtesy of SUBARU OF AMERICA, INC.
