Power Seat Switch

  1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the front seat from the vehicle. Ref. to SEATS>Front Seat>REMOVAL .
  3. Remove the cover - hinge front seat OUT.
    1. Remove the screws in the rear section of the cover - hinge front seat OUT.
    2. Release the claw in the upper section of the cover - hinge front seat OUT.
    3. Remove the clip, and release the claws in the front section of the cover - hinge front seat OUT.
    4. Disconnect the power seat switch and lumbar switch connector and remove the cover - hinge front seat OUT.
    5. Remove the knob - power seat.

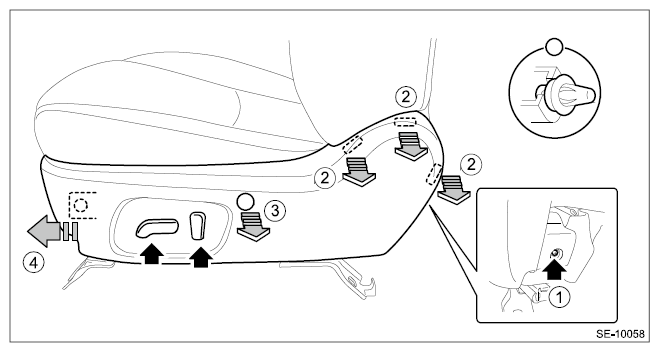

    Fig 1: Removing Cover - Hinge Front Seat OUT
    G11268878Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the screws to remove the switch assembly - power seat.

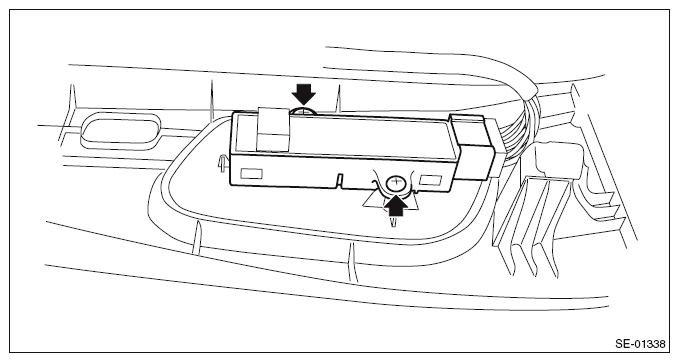

    Fig 2: Locating Screws To Switch Assembly - Power Seat
    G09484603Courtesy of SUBARU OF AMERICA, INC.
