Lumbar Switch

  1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the seat from vehicle. Ref. to SEATS>Front Seat>REMOVAL .
  3. Remove the cover - hinge front seat OUT.
    1. Remove the screws in the rear section of the cover - hinge front seat OUT.
    2. Release the claw in the upper section of the cover - hinge front seat OUT.
    3. Remove the clip, and release the claws in the front section of the cover - hinge front seat OUT.
    4. Disconnect the power seat switch and lumbar switch connector and remove the cover - hinge front seat OUT.

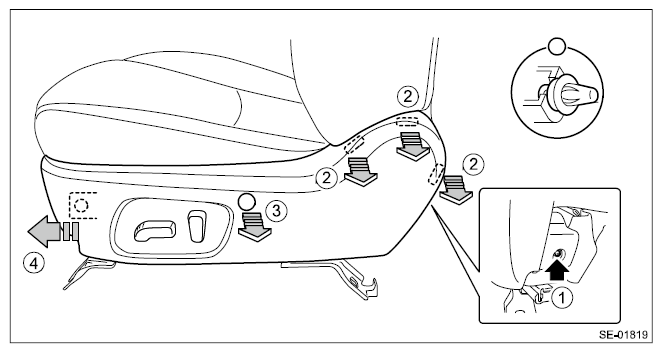

    Fig 1: Removing Cover - Hinge Front Seat OUT
    G10408001Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect the lumbar switch connector and remove the switch assembly - lumbar.
Fig 2: Identifying Lumbar Switch Connector
G05957934Courtesy of SUBARU OF AMERICA, INC.
