Roof Spoiler: Removal

  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Disconnect the rod - power rear gate. (Only for models with power rear gate)
    CAUTION: For the disconnection procedure of the rod - power rear gate, refer to "REMOVAL", "Power Rear Gate Rod" in the "POWER REAR GATE" information and observe the precautions for removal. Ref. to REMOVAL .
  3. Remove the trim panel - rear gate UPR and the trim panel - rear gate pillar side. Ref. to EXTERIOR/INTERIOR TRIM>Rear Gate Trim>REMOVAL .
  4. Remove the spoiler assembly - roof.
    1. Disconnect the connector and remove the nut.
    2. Open the caps (a), and remove the bolt inside.
    3. Remove the clips and remove the spoiler assembly - roof.

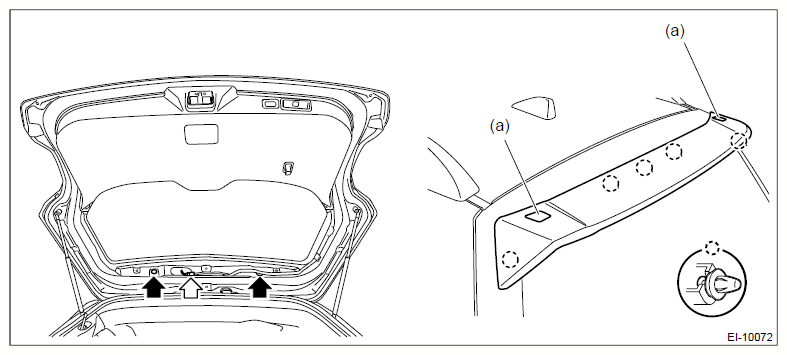

    Fig 1: Locating Caps And Connector Of Spoiler Assembly - Roof
    G10408809Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the high-mounted stop light. Ref. to LIGHTING SYSTEM>High-mounted Stop Light>REMOVAL .
