Mud Guard: Removal

  1. Lift up the vehicle.
  2. Remove the wheels.
  3. Remove the screws and clips to remove the mud guard.

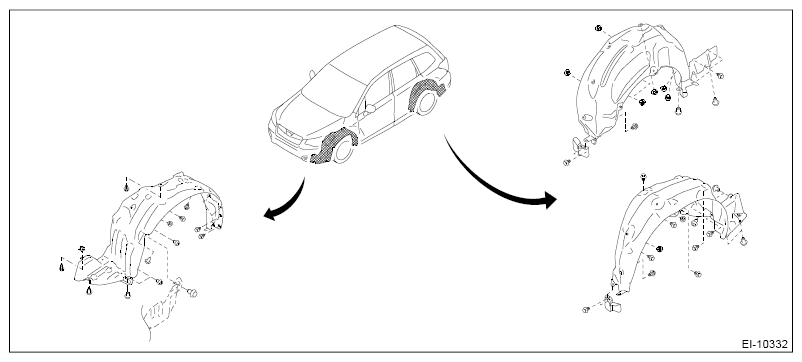

Fig 1: Removing Screws And Clips Of Mud Guard
G11269070Courtesy of SUBARU OF AMERICA, INC.
