Home >> Subaru >> 2017 >> Forester 2.0XT Touring >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> Power Rear Gate (Service Information) >> Power Rear Gate Touch Sensor >> Removal

Power Rear Gate Touch Sensor: Removal

  1. Disconnect the ground cable from battery. Ref. to BATTERY .
  2. Remove the trim panel - rear gate LWR. < Ref. to REMOVAL , Rear Gate Trim. >
  3. Remove the power rear gate touch sensor.
    1. Disconnect the connector.
    2. Remove the bolts, release the clips, and then remove the power rear gate touch sensor.

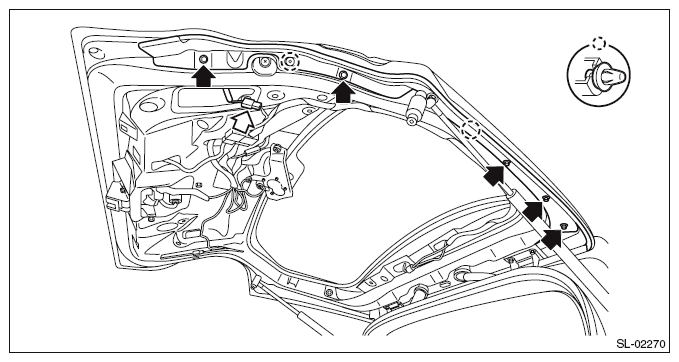

      Fig 1: Locating Power Rear Gate Touch Sensor Bolts
      G09485116Courtesy of SUBARU OF AMERICA, INC.
