Power Rear Gate Inner Switch: Removal

  1. Disconnect the ground cable from battery. Ref. to BATTERY .
  2. Remove the power rear gate inner switch.
    1. Release the claws and pull out the power rear gate inner switch rearward.
      NOTE: Insert a flat tip screwdriver wrapped with protective tape into the slit on the left.
    2. Disconnect the connector and remove the power rear gate inner switch.

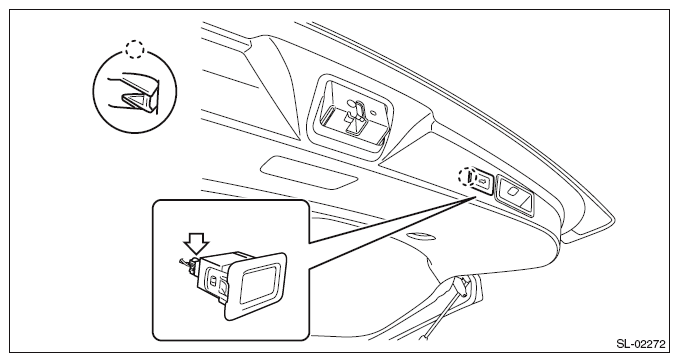

      Fig 1: Identifying Power Rear Gate Inner Switch
      G09485119Courtesy of SUBARU OF AMERICA, INC.
