Power Rear Gate Drive Unit: Removal

  1. Disconnect the ground cable from battery. Ref. to BATTERY .
  2. Remove the rod - power rear gate. Ref. to REMOVAL .
  3. Remove the trim panel - rear apron and the trim panel - rear quarter pillar UPR. < Ref. to REMOVAL , Rear Quarter Trim. >
  4. Remove the power rear gate drive unit (PRG D/U).
    1. Release the claws, and disconnect the connector.
    2. Remove the bolts, release the claw, and then remove the power rear gate drive unit (PRG D/U).

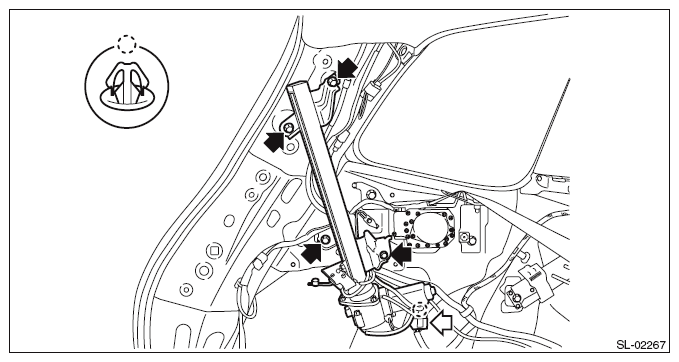

      Fig 1: Removing Power Rear Gate Drive Unit (PRG D/U)
      G09485097Courtesy of SUBARU OF AMERICA, INC.
