Power Rear Gate Buzzer: Removal

  1. Disconnect the ground cable from battery. Ref. to BATTERY .
  2. Remove the trim panel - rear gate LWR. < Ref. to REMOVAL , Rear Gate Trim. >
  3. Remove the power rear gate buzzer.
    1. Disconnect the connector.
    2. Release the claws, and then remove the power rear gate buzzer.

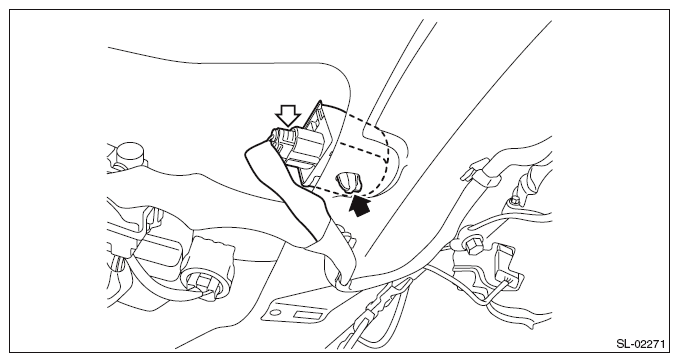

      Fig 1: Locating Power Rear Gate Buzzer
      G09485118Courtesy of SUBARU OF AMERICA, INC.
