Memory Height Switch: Removal

  1. Disconnect the ground cable from battery. Ref. to BATTERY .
  2. Remove the cover assembly - instrument panel LWR driver. < Ref. to REMOVAL , Instrument Panel Lower Cover. >
  3. Remove the memory height switch.
    1. Remove the screw, release the claws, and then remove the panel - switch.

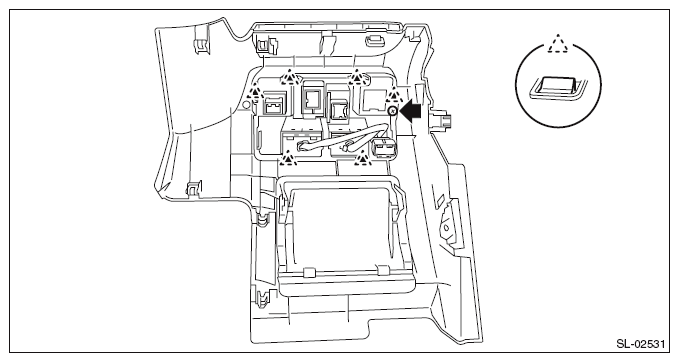

      Fig 1: Locating Memory Height Switch Screw
      G09485123Courtesy of SUBARU OF AMERICA, INC.
    2. Release the claws and remove the memory height switch.

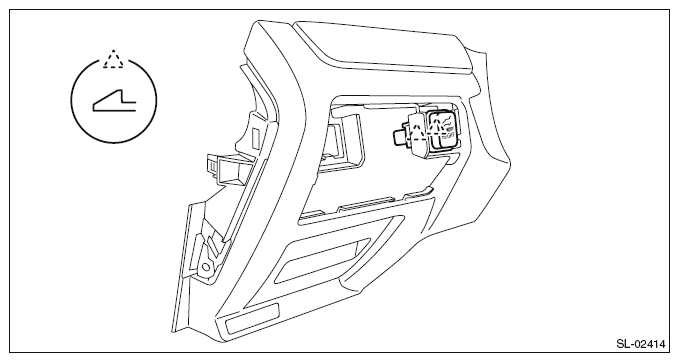

      Fig 2: Identifying Memory Height Switch
      G09485124Courtesy of SUBARU OF AMERICA, INC.
