Unit And Rear Gate

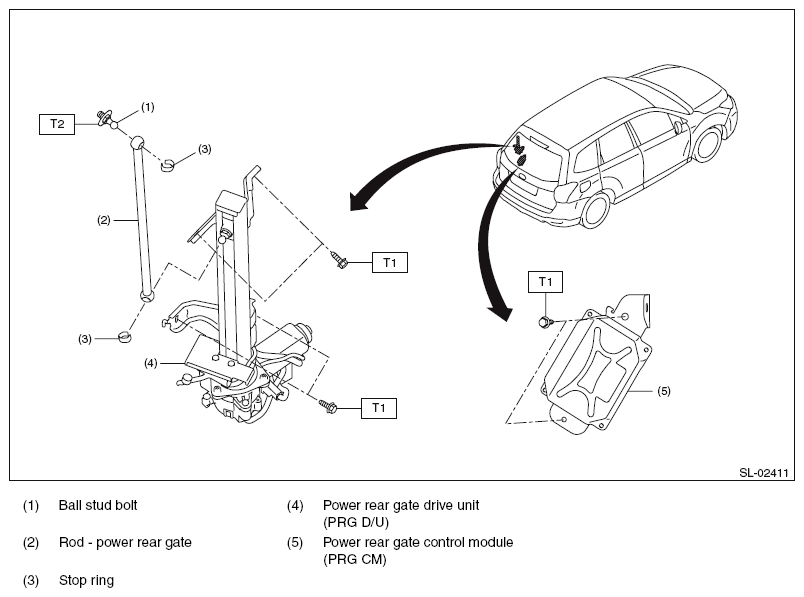

Fig 1: Identifying Rear Gate Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 10 (1.02, 7.4)

T2: 20 (2.04, 14.8)

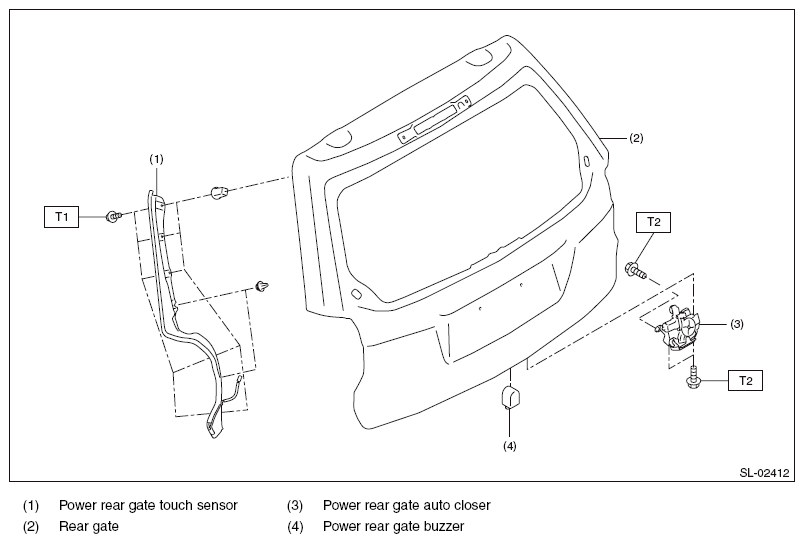

Fig 2: Identifying Rear Gate Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 1.5 (0.15, 1.1)

T2: 25 (2.55, 18.4)
