Communication For Initializing Impossible: Wiring diagram

• Push button start system Ref. to WIRING SYSTEM>Push Button Start System>WIRING DIAGRAM .
• CAN communication system Ref. to WIRING SYSTEM>CAN Communication System>WIRING DIAGRAM .

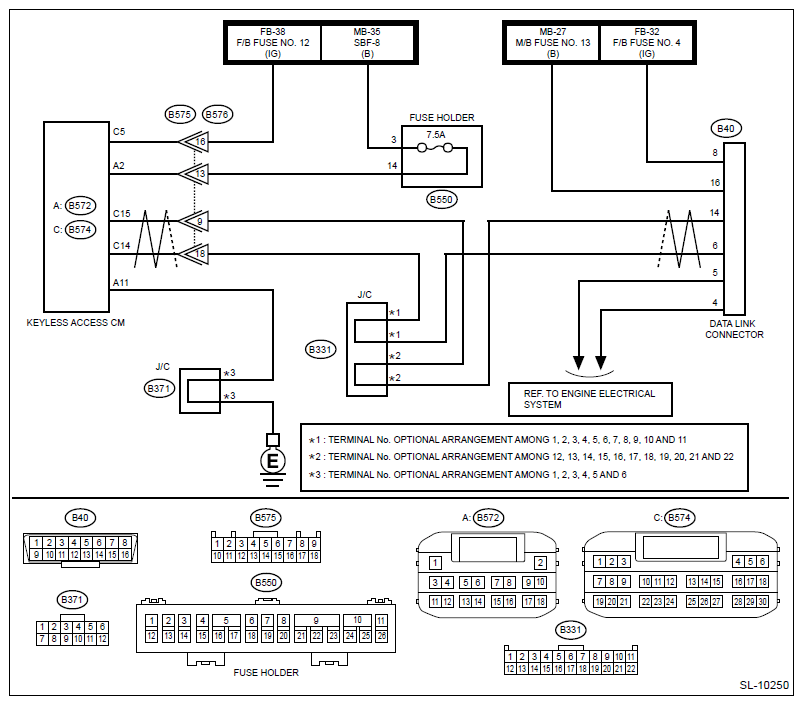

Fig 1: Communication For Initializing Impossible System Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

NOTE: Confirm that the LAN system is working properly before the diagnosis.
Subaru Select Monitor communication line is open or shorted.

Fig 2: Communication For Initializing Impossible Diagnostics Flowchart

Courtesy of SUBARU OF AMERICA, INC.

CAUTION: For replacement procedure of keyless access CM, refer to the "REGISTRATION MANUAL FOR IMMOBILIZER" provided as a separate volume. Contact an authorized Subaru Dealership
