DTC B2789 Id Code Box Communication: Wiring diagram

Push button start system Ref. to WIRING SYSTEM>Push Button Start System>WIRING DIAGRAM .

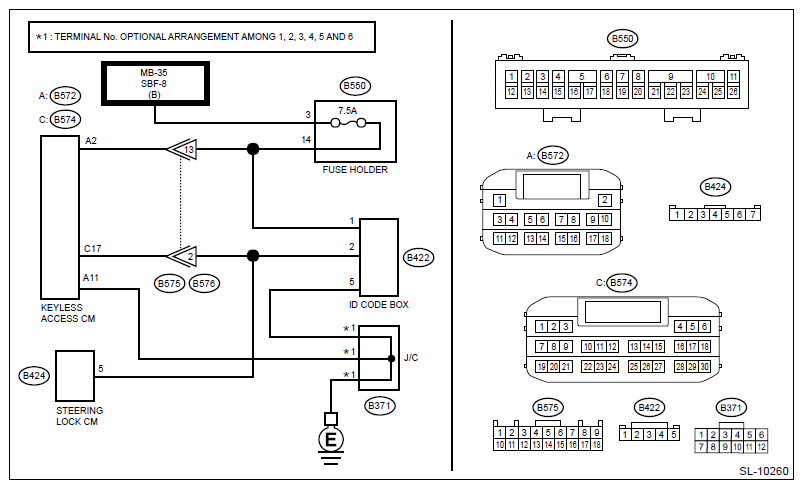

Fig 1: ID Code Box Communication System Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

CAUTION: For replacement procedure of keyless access CM and ID code box, refer to the "REGISTRATION MANUAL FOR IMMOBILIZER" provided as a separate volume. Contact an authorized Subaru Dealership.

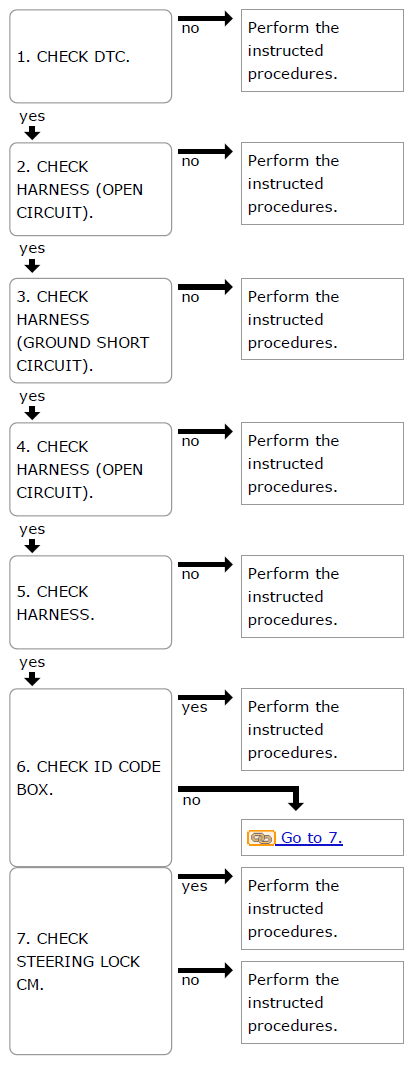

Fig 2: ID Code Box Communication Diagnostics Flowchart

Courtesy of SUBARU OF AMERICA, INC.
