DTC B2283 Vehicle Speed Sensor: Wiring diagram

Push button start system Ref. to WIRING SYSTEM>Push Button Start System>WIRING DIAGRAM .

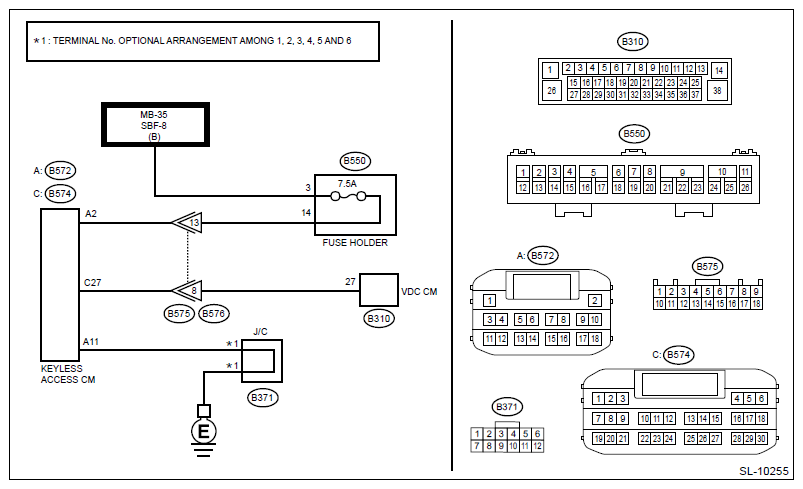

Fig 1: Vehicle Speed Sensor System Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

CAUTION: For replacement procedure of keyless access CM, refer to the "REGISTRATION MANUAL FOR IMMOBILIZER" provided as a separate volume. Contact an authorized Subaru Dealership.

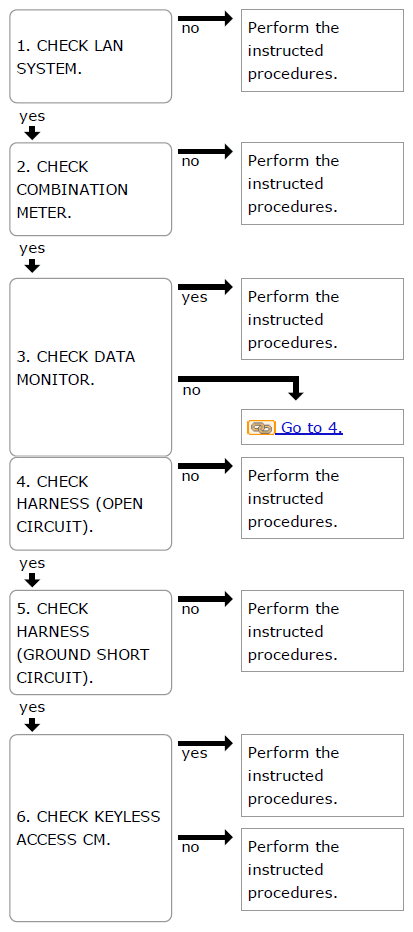

Fig 2: Vehicle Speed Sensor Diagnostics Flowchart

Courtesy of SUBARU OF AMERICA, INC.
