DTC B2276 Acc Relay Off Signal: DTC detecting condition: Wiring diagram

Push button start system Ref. to WIRING SYSTEM>Push Button Start System>WIRING DIAGRAM .

Non-turbo model

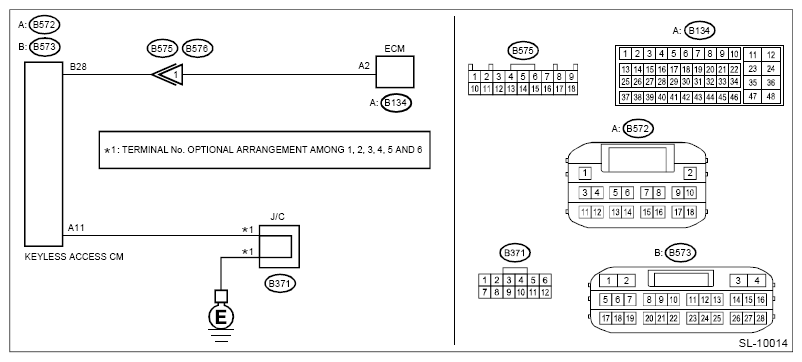

Fig 1: ACC Relay OFF Signal System Wiring Diagram (Non-Turbo Model)
Courtesy of SUBARU OF AMERICA, INC.
Turbo model

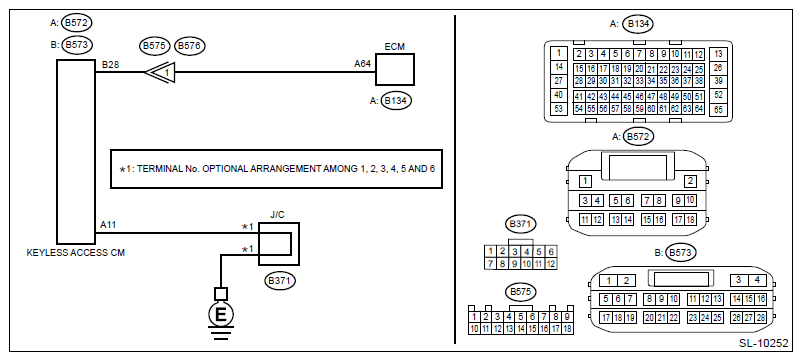

Fig 2: ACC Relay OFF Signal System Wiring Diagram (Turbo Model)

Courtesy of SUBARU OF AMERICA, INC.

CAUTION: For replacement procedure of keyless access CM, refer to the "REGISTRATION MANUAL FOR IMMOBILIZER" provided as a separate volume. Contact an authorized Subaru Dealership.

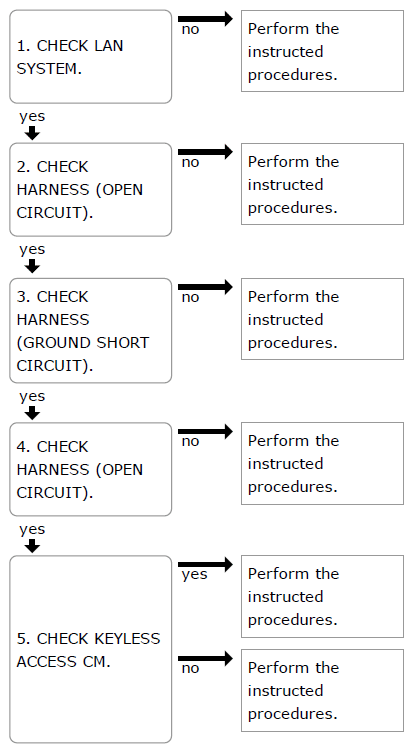

Fig 3: ACC Relay OFF Signal Diagnostics Flowchart

Courtesy of SUBARU OF AMERICA, INC.
