DTC B1242 Wireless Tuner: Wiring diagram

Push button start system Ref. to WIRING SYSTEM>Push Button Start System>WIRING DIAGRAM .

Fig 1: Wireless Tuner System Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

CAUTION:

• For replacement procedure of keyless access CM, refer to the "REGISTRATION MANUAL FOR IMMOBILIZER" provided as a separate volume. Contact an authorized Subaru Dealership.
• When the harness comes close to the receiver, the performance of keyless access system operation and wireless operation may reduce. So, when replacing or inspecting the receiver and harness, do not change the route and length of the surrounding harnesses.

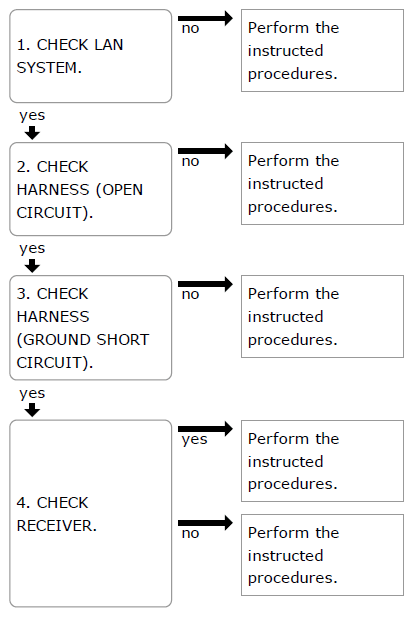

Fig 2: Wireless Tuner Diagnostics Flowchart

Courtesy of SUBARU OF AMERICA, INC.
