Basic Diagnostic Procedure: Procedure

CAUTION:

• Subaru Select Monitor kit is required for reading DTC, performing diagnosis and reading data monitor.
• Before removal or installation, be sure to remove any foreign matter (dust, moisture, oil, etc.).
• Registration of immobilizer may be needed after the replacement of CMs, etc. For detailed procedure, refer to the "REGISTRATION MANUAL FOR IMMOBILIZER" provided as a separate volume, contact an authorized Subaru Dealership.

NOTE:

• Using the Function Setting (Customize), check that the keyless access with push button start is not in a canceled state. Ref. to SECURITY AND LOCKS>Function Setting (Customize)>OPERATION .
• Interview for keyless access with push button start

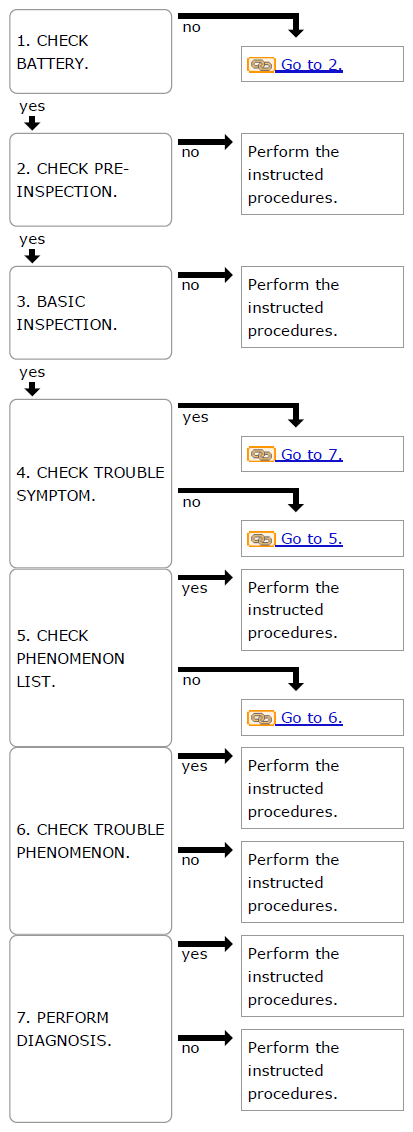

Fig 1: Keyless Access With Push Button Start Diagnostics Flowchart

Courtesy of SUBARU OF AMERICA, INC.
