Power Rear Gate System (Diagnostics): Electrical Component Location: Location

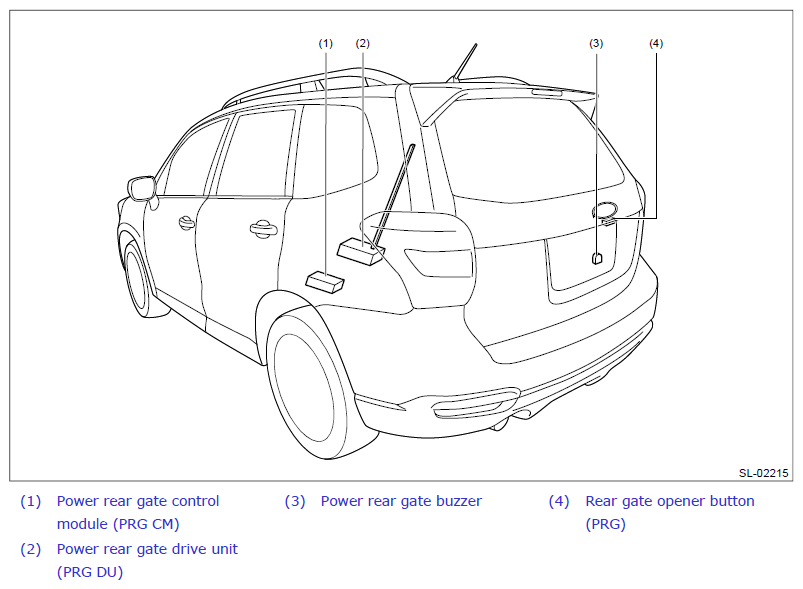

Fig 1: Power Rear Gate Electrical Components Location (1 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

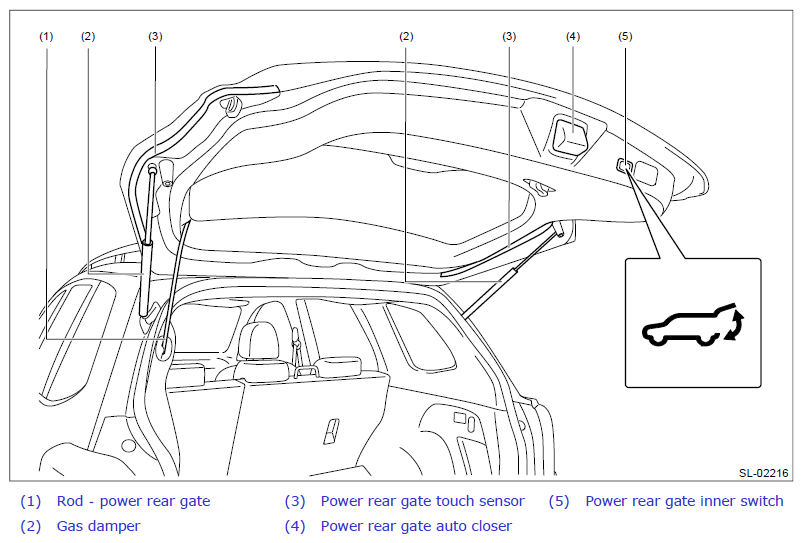

Fig 2: Power Rear Gate Electrical Components Location (2 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

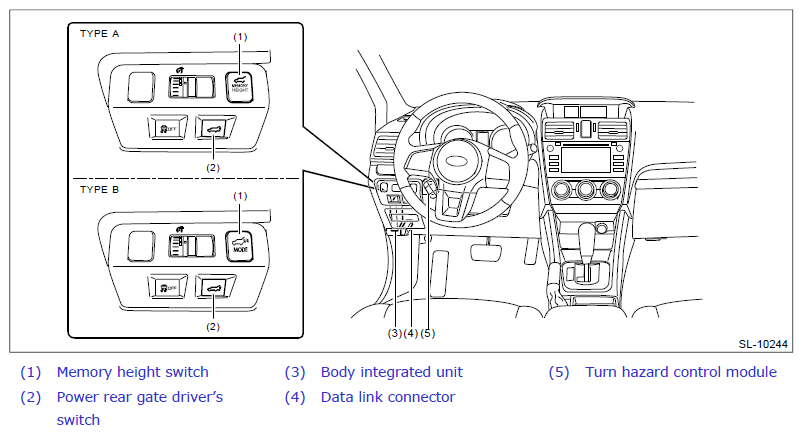

Fig 3: Power Rear Gate Electrical Components Location (3 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

Fig 4: Power Rear Gate Electrical Components Location (4 Of 4)

Courtesy of SUBARU OF AMERICA, INC.
