DTC B251A Lin Connection No-Receive Data: Wiring diagram

Power rear gate system Ref. to WIRING SYSTEM>Power Rear Gate System>WIRING DIAGRAM .

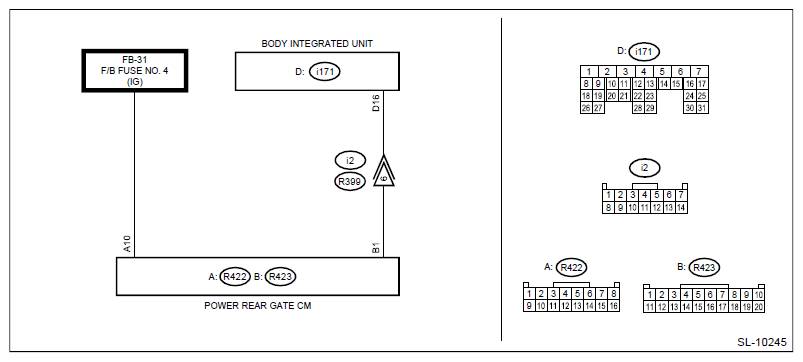

Fig 1: LIN Connection No-Receive Data System Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

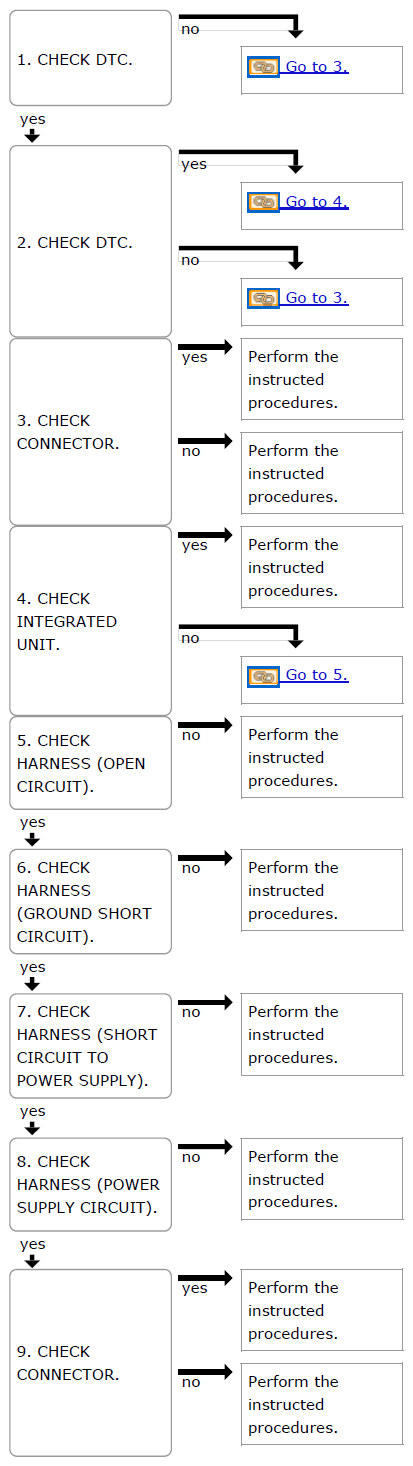

Fig 2: LIN Connection No-Receive Data Diagnostics Flowchart

Courtesy of SUBARU OF AMERICA, INC.
