Immobilizer System (Diagnostics): Electrical Component Location: Location

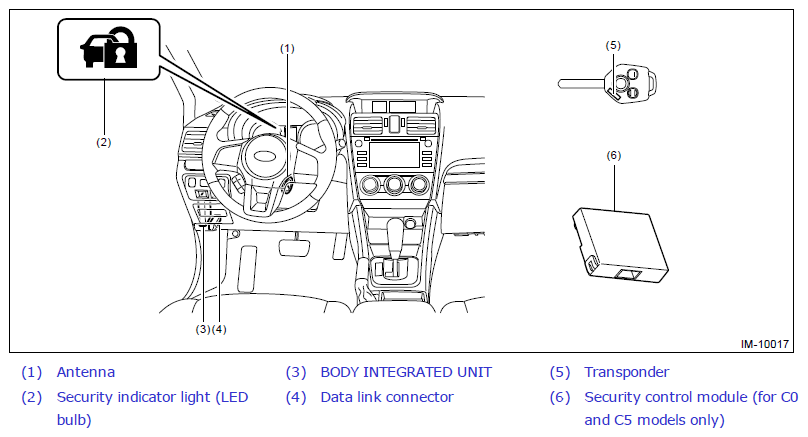

Fig 1: Identifying Immobilizer Electrical Components

G11271308

Courtesy of SUBARU OF AMERICA, INC.
