DTC B1572 IMM Circuit Except Antenna Circuit: Wiring diagram

Immobilizer system Ref. to WIRING SYSTEM>Immobilizer System>WIRING DIAGRAM .

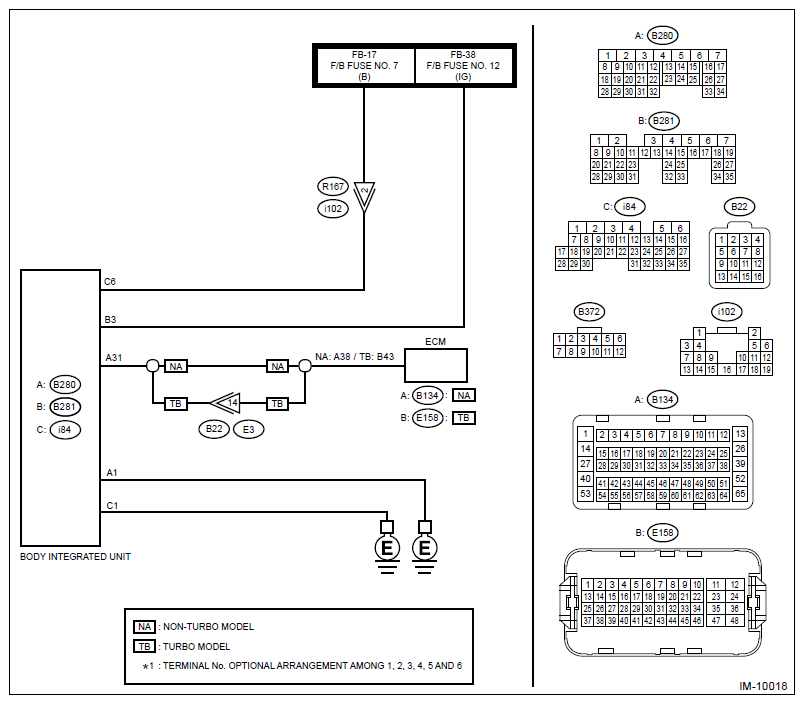

Fig 1: Immobilizer System Wiring Diagram (IMM Circuit Except Antenna Circuit)

Courtesy of SUBARU OF AMERICA, INC.

CAUTION: When the body integrated unit isreplaced, registration of the immobilizer system is required. For details, refer to the "REGISTRATIONMANUAL FOR IMMOBILIZER" provided as a seperate volume.

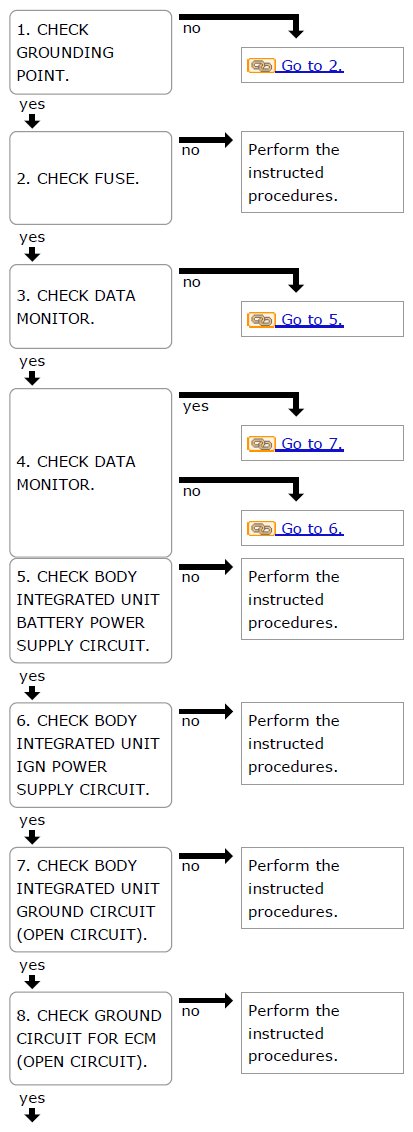

Fig 2: Immobilizer System IMM Circuit Except Antenna Circuit Diagnosis Flowchart (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

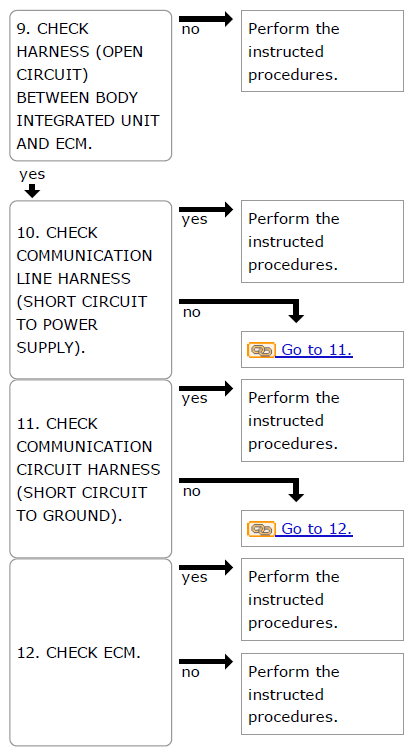

Fig 3: Immobilizer System IMM Circuit Except Antenna Circuit Diagnosis Flowchart (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
