Front Hood Opener

Remove the opener handle.
1. Remove the cable.
2. Remove the bolt, and remove the opener handle.

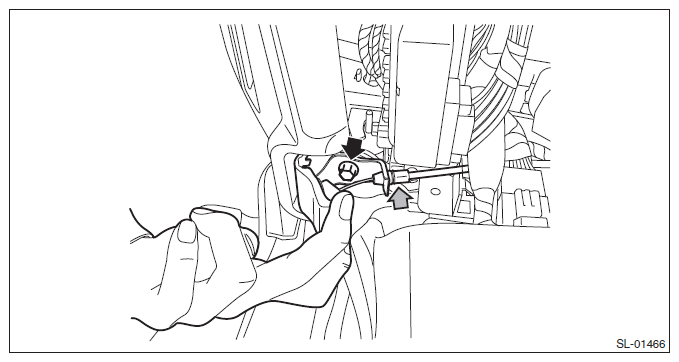

Fig 1: Removing Front Hood Opener Handle
Courtesy of SUBARU OF AMERICA, INC.
Remove the following parts and remove the cable clip and cable.
- Lock assembly - front hood: Ref. to SECURITY AND LOCKS>Front Hood Lock Assembly>REMOVAL .
- Cover assembly - instrument panel LWR driver: Ref. to EXTERIOR/INTERIOR TRIM>Instrument Panel Lower Cover>REMOVAL .

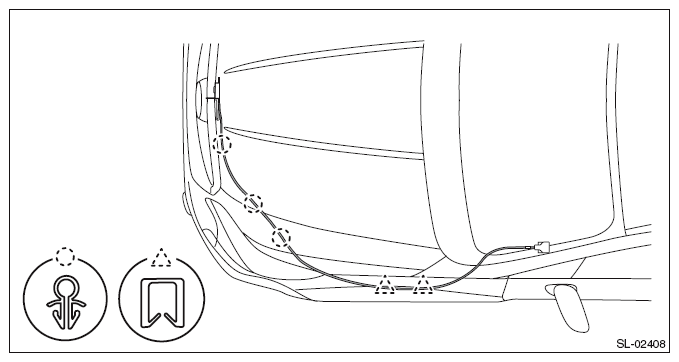

Fig 2: Identifying Cable Clips

Courtesy of SUBARU OF AMERICA, INC.
