Relay and Fuse: Location

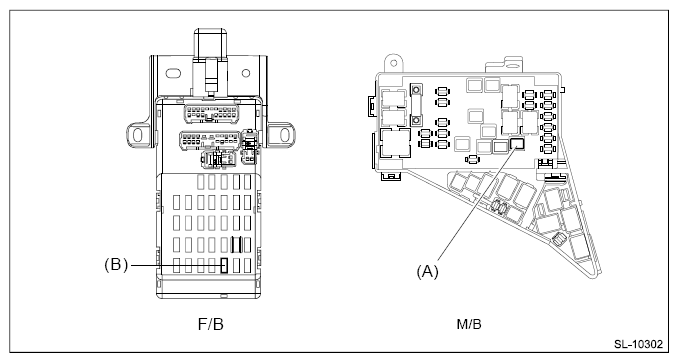

Fig 1: Relay And Fuse Location

Courtesy of SUBARU OF AMERICA, INC.

Main fuse box	Fuse 50 A (keyless access control module)	(A)
Relay & fuse box	Fuse 7.5 A (body integrated unit)	(B)

NOTE: For other related fuses, refer to the wiring diagram. Ref. to WIRING SYSTEM>Power Supply Circuit .
