Anti-Theft System - Security And Locks: Receiver: Removal

NOTE: Except for models without keyless access with push button start.

1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
   NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
2. Remove the trim panel - rear apron RH. Ref. to EXTERIOR/INTERIOR TRIM>Rear Quarter Trim>REMOVAL .
3. Remove the receiver assembly.
   1. Disconnect the connector.
   2. Remove the bolt and remove the receiver assembly.

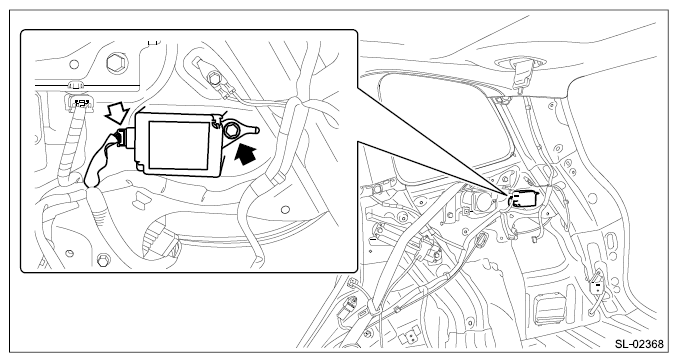

Fig 1: Locating Bolt And Receiver Assembly

Courtesy of SUBARU OF AMERICA, INC.
