Rear Inner Remote: Removal

  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the trim panel - rear door. Ref. to EXTERIOR/INTERIOR TRIM>Door Trim>REMOVAL>REAR DOOR .
  3. Remove the screw, and remove the remote assembly - door.

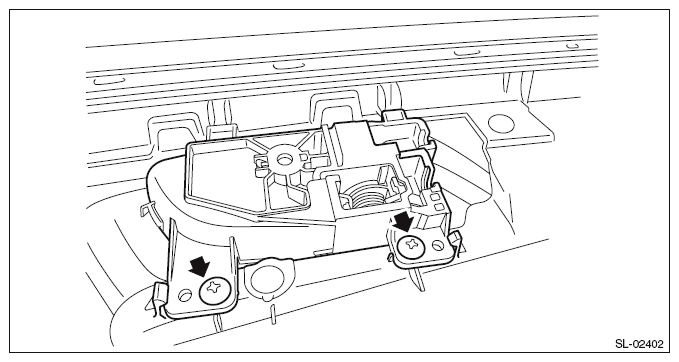

Fig 1: Locating Screws And Remote Assembly - Door
G09484650Courtesy of SUBARU OF AMERICA, INC.
