Rear Gate Opener Button: Removal

NOTE: The button - opener rear gate is integrated with the rear lock button. (Model with keyless access with push button start)

Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
Remove the trim panel - rear gate and the garnish assembly - rear gate. Ref. to EXTERIOR/INTERIOR TRIM>Rear Gate Garnish>REMOVAL .
Remove the interior antenna. (Model with keyless access with push button start)
1. Remove the connector.
2. Remove the screws and detach the interior antenna.
Fig 1: Removing Interior Antenna Connector
Courtesy of SUBARU OF AMERICA, INC.
Release the locks at both ends of the button - opener rear gate by pushing them with a flat tip screwdriver, and remove the button - opener rear gate.

Fig 2: Removing Button - Opener Rear Gate
Courtesy of SUBARU OF AMERICA, INC.

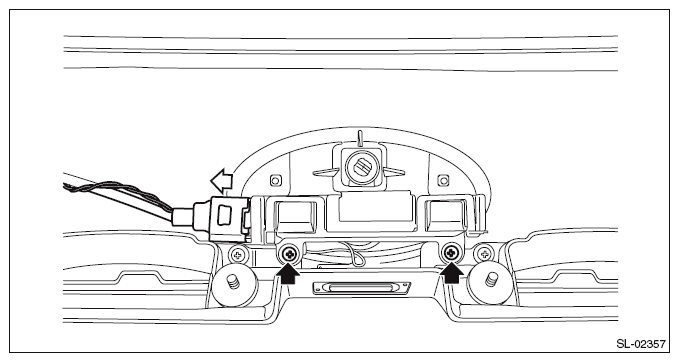

Remove the screws, and remove the rear lock button, and remove the integrated harness. (Model with keyless access with push button start)

Fig 3: Locating Screws And Rear Lock Button

Courtesy of SUBARU OF AMERICA, INC.
