Rear Gate Latch and Actuator Assembly: Removal

NOTE: For models with power rear gate, refer to "Power Rear Gate Auto Closer". Ref. to REMOVAL .

Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
Remove the trim panel - rear gate. Ref. to EXTERIOR/INTERIOR TRIM>Rear Gate Trim>REMOVAL .
Remove the latch and actuator - rear gate.
1. Disconnect the connector.
2. Remove the bolts, and remove the latch and actuator - rear gate.

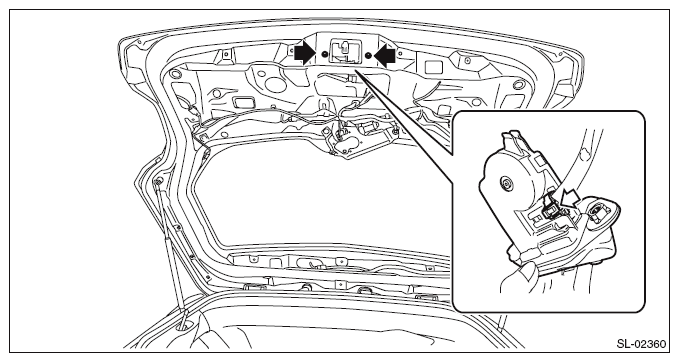

Fig 1: Locating Trim Panel - Rear Gate Bolts

Courtesy of SUBARU OF AMERICA, INC.

SECURITY AND LOCKS>Rear Gate Latch and Actuator Assembly

INSTALLATION

Install each part in the reverse order of removal.
Tightening torque:

Refer to "COMPONENT" of "General Description". Ref. to SECURITY AND LOCKS>General Description>COMPONENT>REAR GATE LOCK .
Connect the battery ground terminal. Ref. to NOTE>NOTE>BATTERY .
