Keyless Buzzer: Removal

  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Lift up the vehicle.
  3. Remove the screw and clips, and turn over the front side of the mud guard - front.

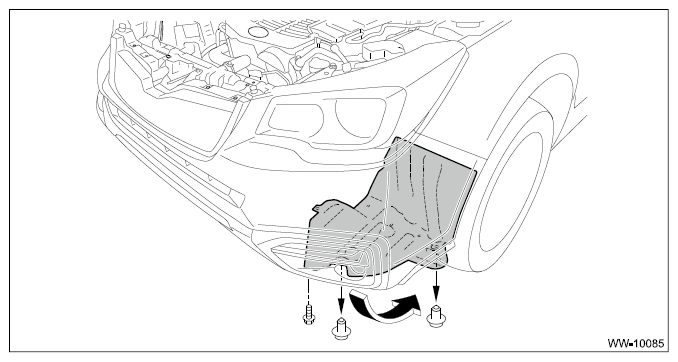

    Fig 1: Turning Front Side Of Mud Guard - Front
    G11268522Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the keyless buzzer.
    1. Disconnect the connector.
    2. Remove the clip and detach the keyless buzzer.

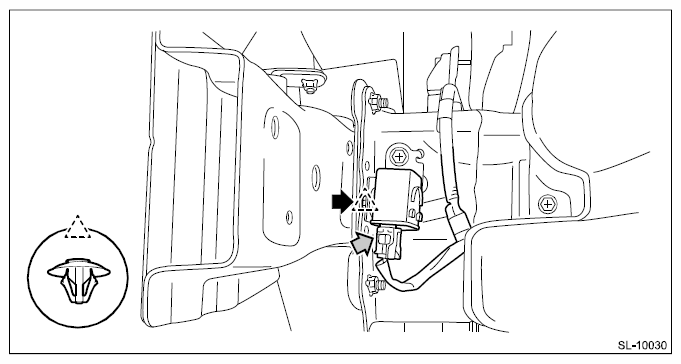

Fig 2: Locating Keyless Buzzer Connector And Clip
G10408657Courtesy of SUBARU OF AMERICA, INC.
