Front Antenna

CAUTION: Do not detach the antenna from the front door outer handle.

If replacement is required, replace the front outer handle assembly as a whole .

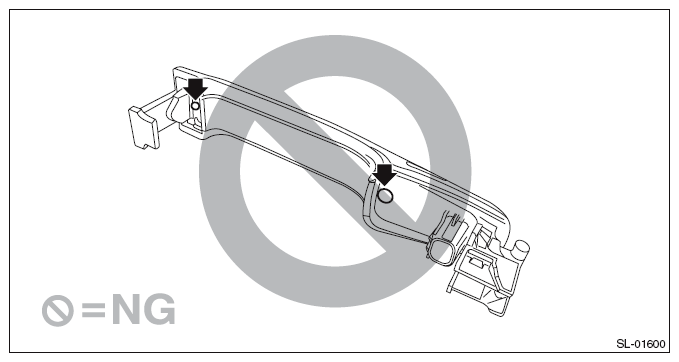

Fig 1: Precaution For Do Not Detach Antenna From Front Door Outer Handle

Courtesy of SUBARU OF AMERICA, INC.

Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. Ref. to NOTE>NOTE>BATTERY .
NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
Remove the handle - door outer. Ref. to SECURITY AND LOCKS>Front Outer Handle>REMOVAL .
