Center Antenna

  1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the rear seat cushion assembly. Ref. to SEATS>Rear Seat>REMOVAL .
  3. Remove the center antenna assembly - interior.
    NOTE: Do not remove the antenna assembly from the cover. If removed, the antenna assembly and cover mounting becomes loose, causing abnormal noises.
    1. Disconnect the connector.
    2. Remove the screw, and remove the center antenna assembly - interior.

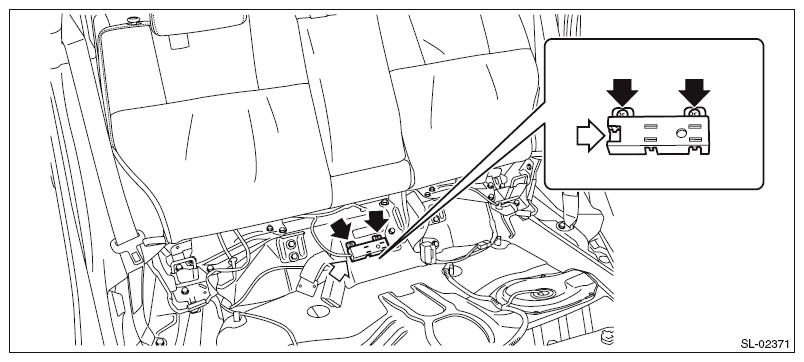

Fig 1: Locating Screws And Center Antenna Assembly - Interior
G09484722Courtesy of SUBARU OF AMERICA, INC.
