Glove Box Lid

  1. Remove the pocket assembly.
    1. Attach the protective tape (a) to the panel center LWR.
    2. Remove the damper COMPL - pocket.
    3. Release the stoppers and remove the pocket assembly by pulling it toward you.

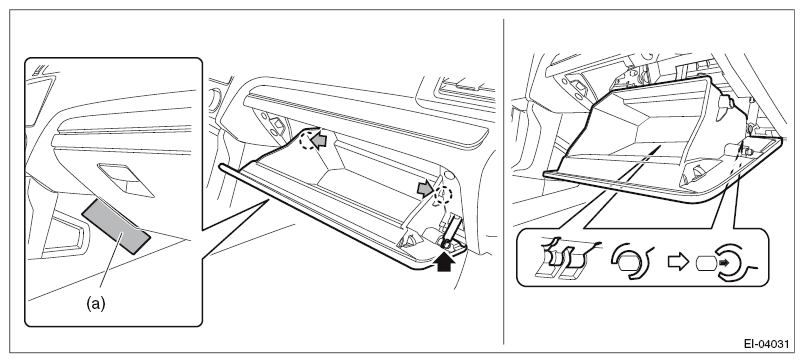

    Fig 1: Attaching Protective Tape To Panel Center LWR
    G09483844Courtesy of SUBARU OF AMERICA, INC.
  2. Replace the key cylinder.
    1. Pull up the lock knob.
    2. Push out the key cylinder from the pocket assembly while pressing in the metal plate.

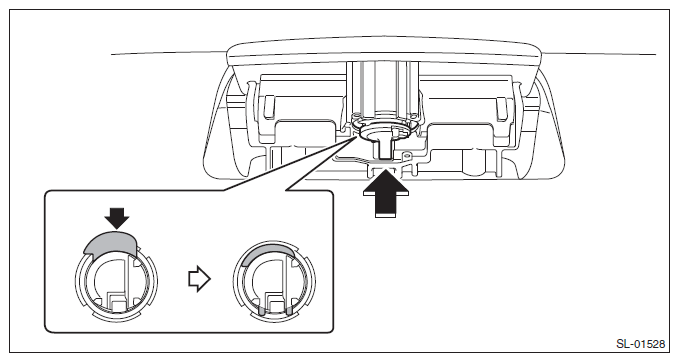

    Fig 2: Pushing Out Key Cylinder From Pocket Assembly
    G08319275Courtesy of SUBARU OF AMERICA, INC.
  3. Install each part in the reverse order of removal.
