Model With Keyless Access With Push Button Start

NOTE: Immobilizer antenna is integrated with the push button ignition switch.

Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. Ref. to NOTE>NOTE>BATTERY .
NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
Remove the cover assembly - instrument panel LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>Instrument Panel Lower Cover>REMOVAL .
Remove the push button ignition switch.
1. Disconnect the connector, and remove the aspirator hose.

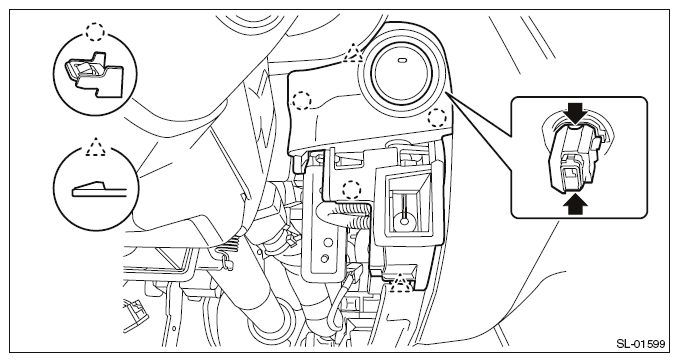

  Fig 1: Removing Push Button Ignition Switch
  Courtesy of SUBARU OF AMERICA, INC.
2. Release the claws, and then remove the panel - switch.
3. Release the claws, and then remove the push button ignition switch from the panel - switch.

  Fig 2: Locating Push Button Ignition Switch From Panel - Switch
  Courtesy of SUBARU OF AMERICA, INC.
