Fuel Flap Opener

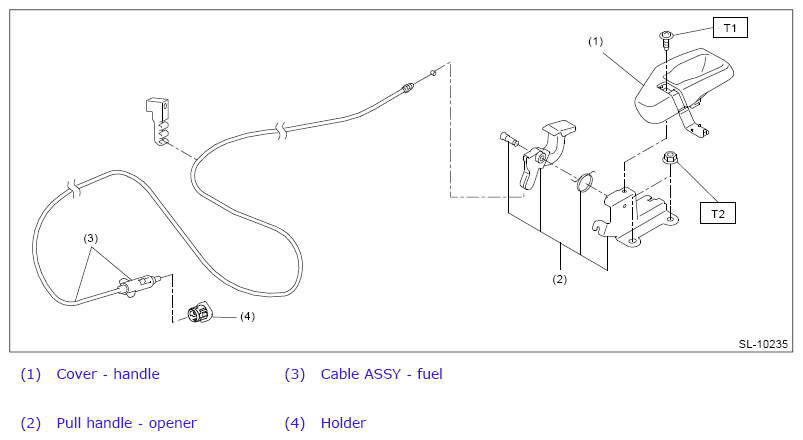

Fig 1: Exploded View Of Fuel Flap Opener With Torque Specification

G11268903

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 4.5 (0.45, 3.3)

T2: 7.5 (0.76, 5.5)
