Front Inner Remote: Removal

  1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the trim panel - front door. Ref. to EXTERIOR/INTERIOR TRIM>Door Trim>REMOVAL>FRONT DOOR .
  3. Remove the screw, and remove the remote assembly - door.
    CAUTION: The remote assembly - door is tightened with the plate. Be careful not to drop or damage the part.

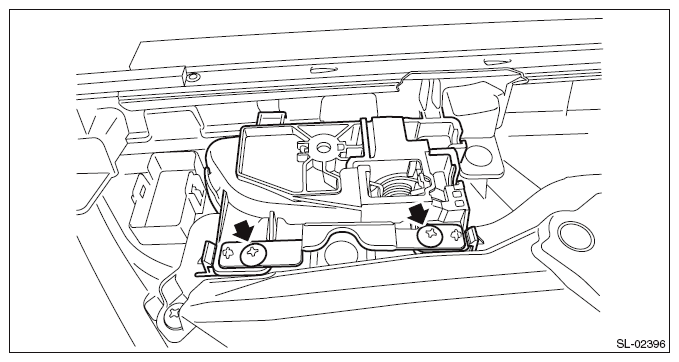

Fig 1: Locating Screws And Remote Assembly - Door
G09484635Courtesy of SUBARU OF AMERICA, INC.
