Front Hood Lock Assembly: Adjustment

  1. Loosen the bolt, and adjust the lock assembly - front hood while moving it up and down.

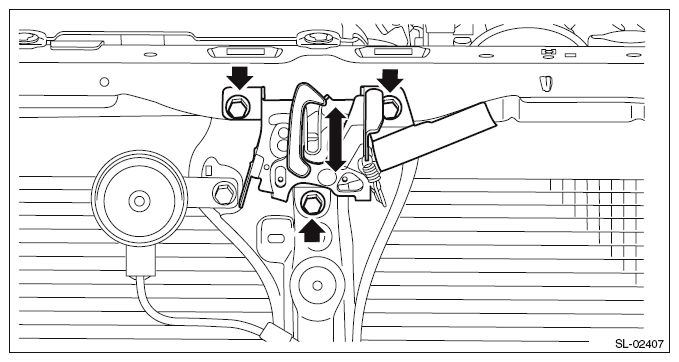

    Fig 1: Adjusting Lock Assembly - Front Hood
    G09484673Courtesy of SUBARU OF AMERICA, INC.
  2. After adjustment, tighten the bolts securely.

    Tightening torque:

    Refer to "COMPONENT" of "General Description". Ref. to SECURITY AND LOCKS>General Description>COMPONENT>FRONT HOOD LOCK .
