Washer Tank

  1. Open the hood COMPL - front.
  2. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  3. Remove the bumper face - front. Ref. to EXTERIOR/INTERIOR TRIM>Front Bumper>REMOVAL .
  4. Remove the tank - washer assembly.
  1. Remove the clip of the holder - windshield washer tank.

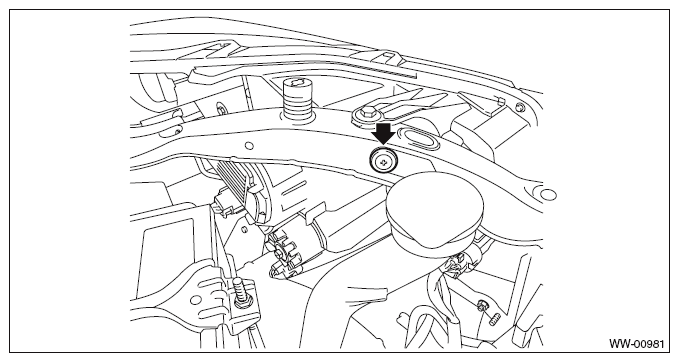

    Fig 1: Remove Bolt And Remove The Tank
    G09484326Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the connector from the motor pump assembly - washer and the sensor - washer tank, and then remove the harness clip.
  3. Prepare a container before disconnecting the hose - washer, and drain all washer fluid in the tank - washer.
  4. Remove the bolt and nuts and remove the tank - washer assembly.

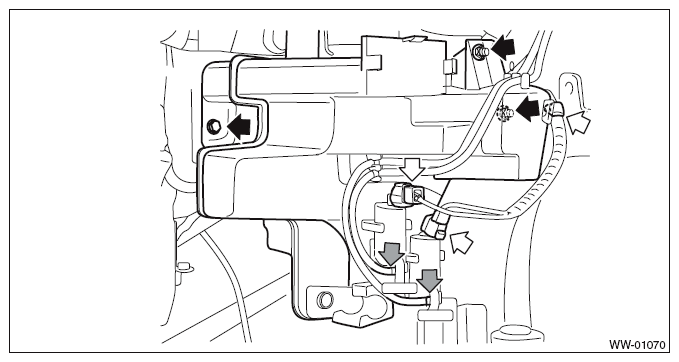

Fig 2: Locating Tank - Connectors, Washer Assembly Bolts, Nuts Harness Clip And Hose
G09484327Courtesy of SUBARU OF AMERICA, INC.
