Washer Motor

  1. Open the hood COMPL - front.
  2. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  3. Remove the screw and clips, and turn over the mud guard - front LH.

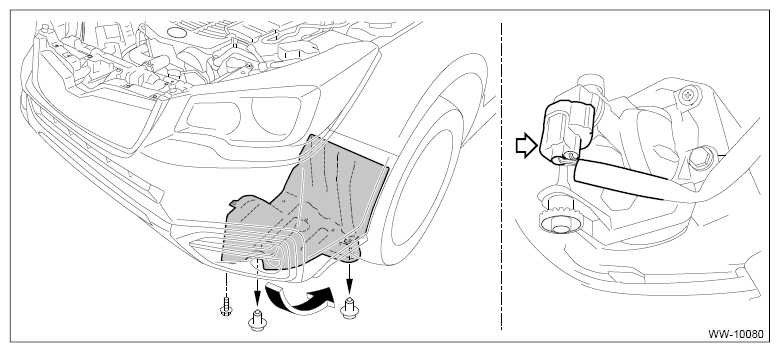

    Fig 1: Screw And Clips, Turning Over Mud Guard And Connector Of Fog Light Assembly- Front (LH)
    G11268594Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect the connector of the fog light assembly - front LH. (Model with fog light)
  5. Disconnect the connector from the motor pump assembly - washer and remove the harness clip.
  6. Prepare a container before disconnecting the hose - washer, and drain all washer fluid in the tank - washer.
  7. Remove the motor pump assembly - washer from the tank - washer.

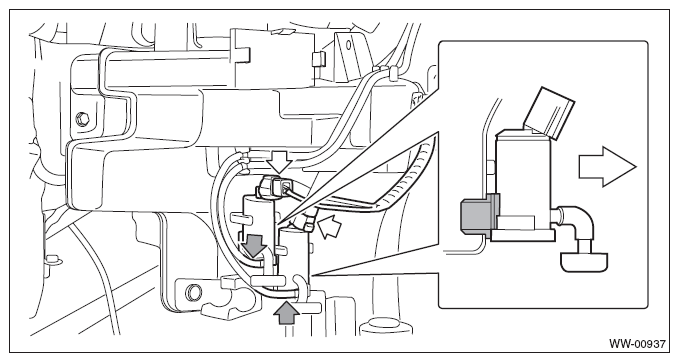

Fig 2: Removing Motor Pump Assembly - Washer From Tank -Washer
G08549479Courtesy of SUBARU OF AMERICA, INC.
