Rear Wiper Motor: Removal

  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the rear gate trim. Ref. to EXTERIOR/INTERIOR TRIM>Rear Gate Trim>REMOVAL .
  3. Remove the arm assembly - rear wiper.
    1. Remove the cover - rear wiper arm.
    2. Remove the nut, and remove the arm assembly - rear wiper.
    Fig 1: Removing Cover - Rear Wiper Arm
    G08316565Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the motor assembly - rear wiper.
    1. Disconnect the harness connector of the motor assembly - rear wiper.
    2. Remove the bolts, and remove the motor assembly - rear wiper.

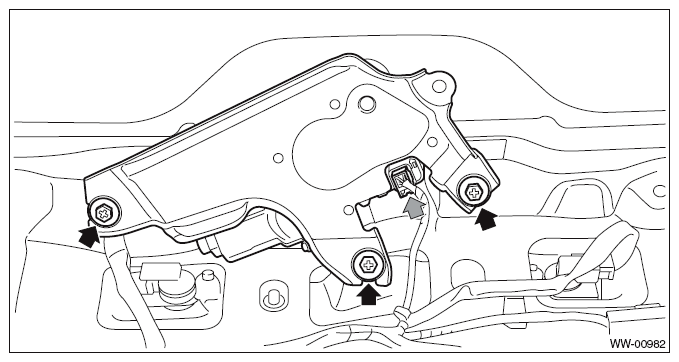

    Fig 2: Locating Motor Assembly - Rear Wiper Bolts
    G09484360Courtesy of SUBARU OF AMERICA, INC.
