Rear Wiper Motor: Inspection

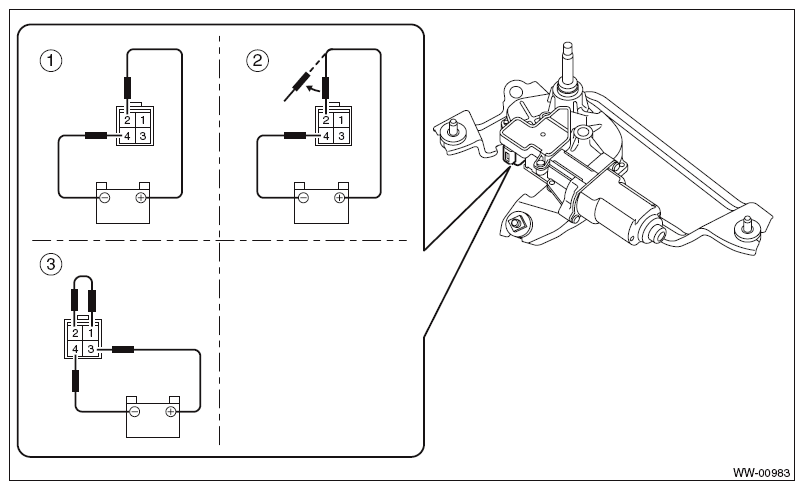

- Connect the battery to the rear wiper motor connector, and check that the motor assembly - rear wiper operates.
- Connect the battery to terminals of the connector, and remove the terminal connection with motor rotating, and stop the motor assembly - rear wiper in mid-operation.
- Connect the battery and check that the motor stops at the automatic stop position after the motor operates at low speed.
CAUTION:
Fix the motor to prevent the motor from being shorted by moving during operation.
