WASHER TANK (MODELS WITHOUT EyeSight)

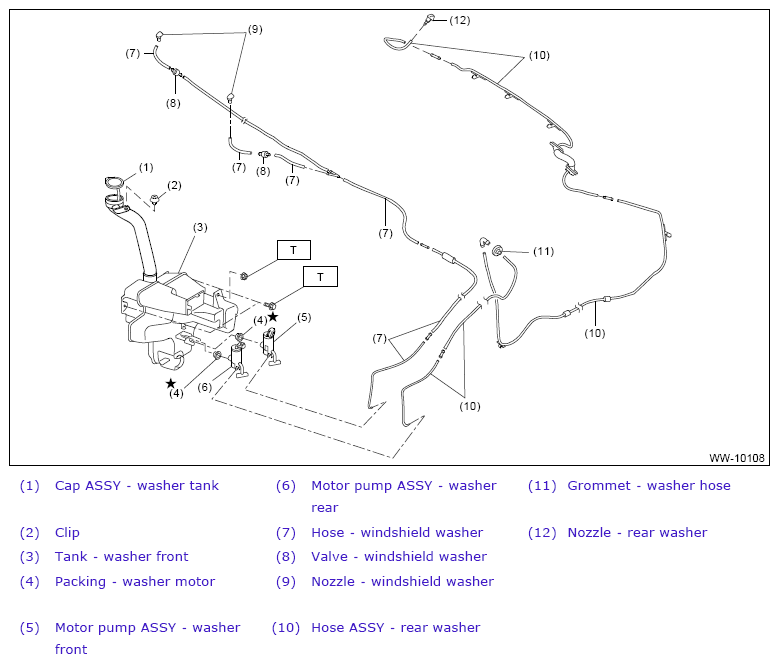

Fig 1: Exploded View Of Washer Tank (Models Without Eyesight) With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 6 (0.61, 4.4)
