Front Wiper

• Models without EyeSight

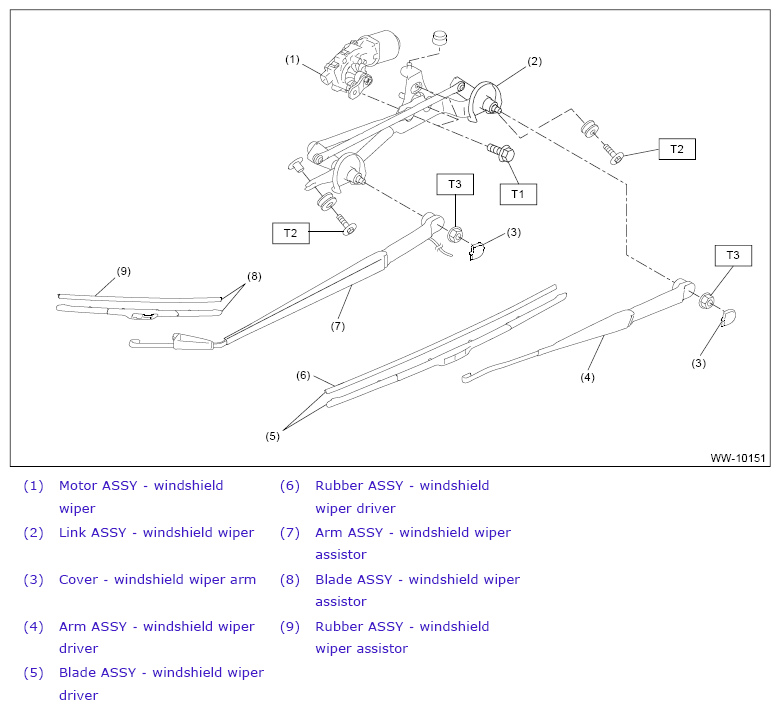

Fig 1: Exploded View Of Front Wiper With Torque Specification (Models Without Eyesight)

Courtesy of SUBARU OF AMERICA, INC.

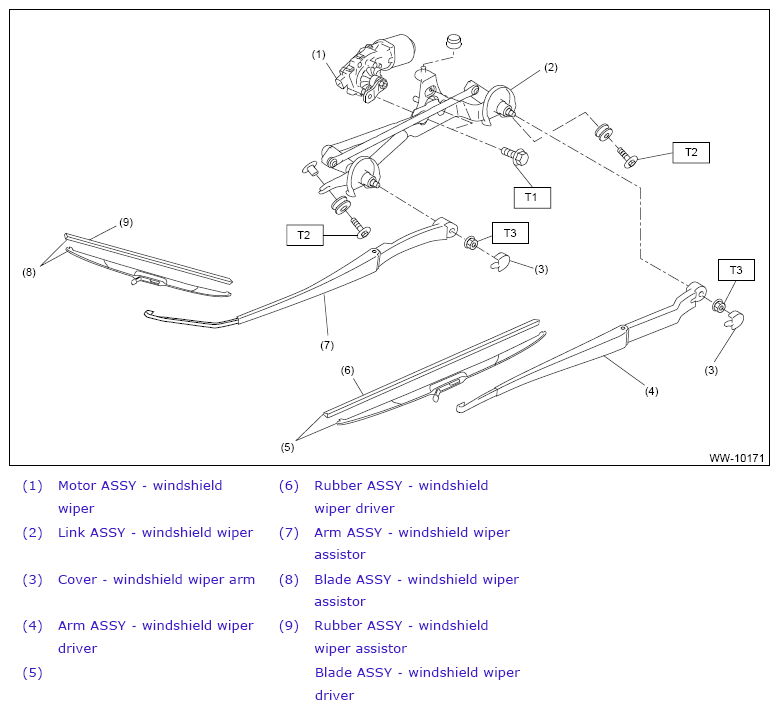

Fig 2: Exploded View Of Front Wiper With Torque Specification (Models With Eyesight)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 5.5 (0.56, 4.1)

T2: 6 (0.61, 4.4)

T3: 26 (2.65, 19.2)
