MODELS WITHOUT EyeSight

NOTE: Since the arm assembly - windshield wiper LH and RH can interfere with each other, remove the driver's side first.
  1. Remove the cover - windshield wiper arm.
  2. Remove the nuts, and remove the arm assembly - windshield wiper.

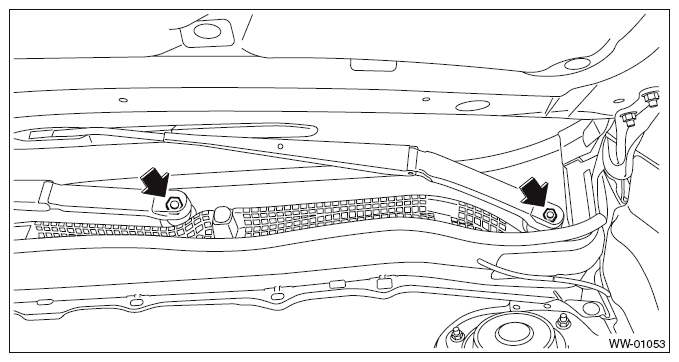

Fig 1: Locating Arm - Assembly Windshield Wiper Nuts
G09484332Courtesy of SUBARU OF AMERICA, INC.
