MODELS WITH EyeSight

NOTE: Since the arm assembly - windshield wiper LH and RH can interfere with each other, remove the driver's side first.

Remove the cover - joint from cowl panel assembly.
1. Open the front hood.
2. Release the claws by pressing the portion (a), and then remove the cover - joint.
Fig 1: Releasing Claws By Pressing Portion (A)
Courtesy of SUBARU OF AMERICA, INC.
Remove the hose from the joint - washer hose.

Fig 2: Removing Hose From Joint - Washer Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove the arm assembly - windshield wiper.
1. Remove the cover - windshield wiper arm.
2. Remove the nuts, and remove the arm assembly - windshield wiper.

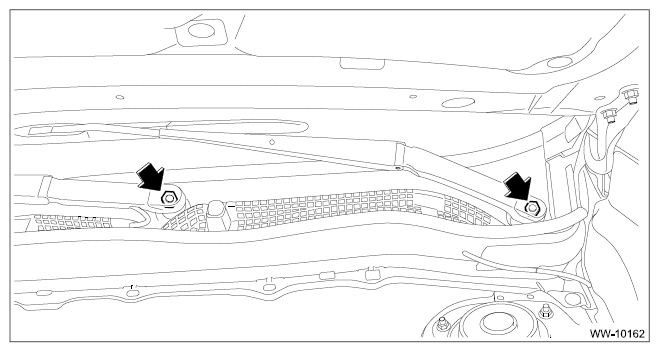

Fig 3: Locating Arm Assembly - Windshield Wiper Nuts
Courtesy of SUBARU OF AMERICA, INC.
