NOZZLE - WIPER ARM WASHER & HOSE (MODEL WITH EyeSight)

If replacement is required, replace the arm assembly - windshield wiper assistor as a unit.

1. Remove the arm assembly - windshield wiper. Ref. to WIPER AND WASHER SYSTEMS>Front Wiper Arm>REMOVAL .
2. Remove the cowl panel side and cowl panel assembly. Ref. to EXTERIOR/INTERIOR TRIM>Cowl Panel>REMOVAL .
   CAUTION: Before removing the cowl panel, use an air blower and nylon brush to sweep gravel from the lower area of the front side of the glass.
3. Remove the hose from the wiper arm as necessary.
   1. Put alignment marks (a) at two places.
   2. Remove the hose.

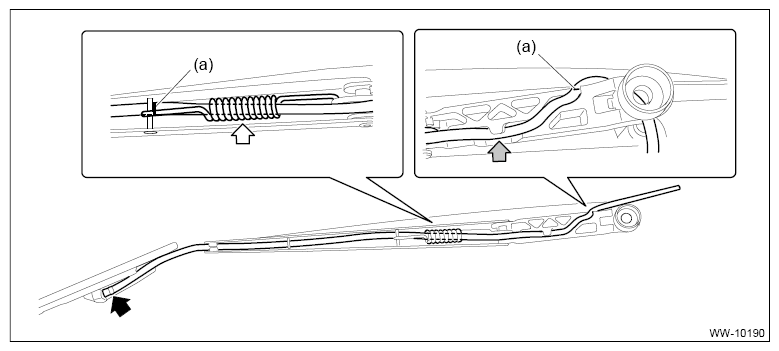

   Fig 1: Marking Alignment Marks At Two Places

   Courtesy of SUBARU OF AMERICA, INC.
4. Remove the joint - washer hose and the hose - wiper arm washer from the cowl panel as required.

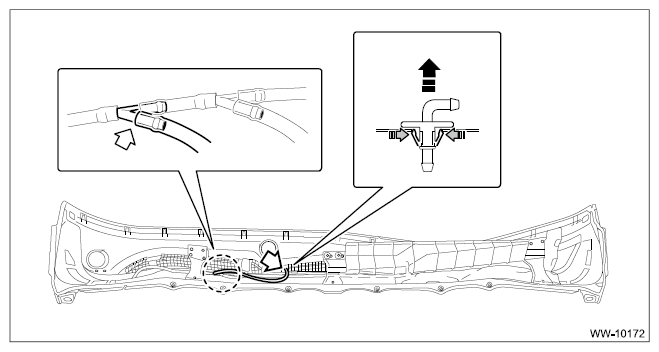

Fig 2: Removing Joint - Washer Hose

Courtesy of SUBARU OF AMERICA, INC.
