Nozzle - Windshield Washer

Turn the wiper switch to OFF position.
While the vehicle is at a standstill, insert the washer nozzle adjustment tool (a) into upper side (b) and lower side (c) of the nozzle - windshield washer to perform necessary adjustment.

Fig 1: Adjusting Nozzle - Windshield Washer Using Washer Nozzle Adjustment Tool
Courtesy of SUBARU OF AMERICA, INC.

CAUTION: Washer nozzle is made of resin. If precision screwdriver (A) or equivalent is inserted into discharge port for adjustment, the discharge port can be deformed, and washer fluid cannot be sprayed.

Fig 2: Identifying Precision Screwdriver
Courtesy of SUBARU OF AMERICA, INC.
Adjust the washer injection position as shown in the figure.

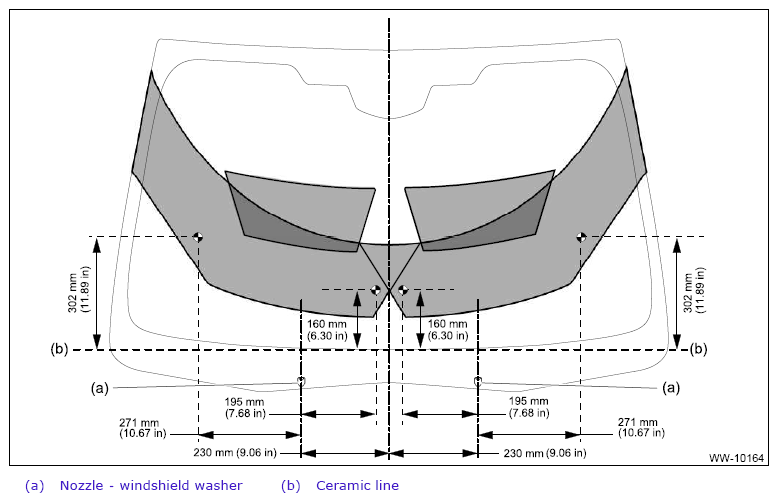

Fig 3: Adjustment Washer Injection Position Mearsurements

G11268619

Courtesy of SUBARU OF AMERICA, INC.
