Combination Switch (Wiper): Removal

  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the cover assembly - column.
    1. Release the screws and claws.
    2. Remove the cap - key cylinder (a). (Model with keyless access with push button start)
    3. Remove the cover assembly - column UPR and the cover assembly - column LWR.

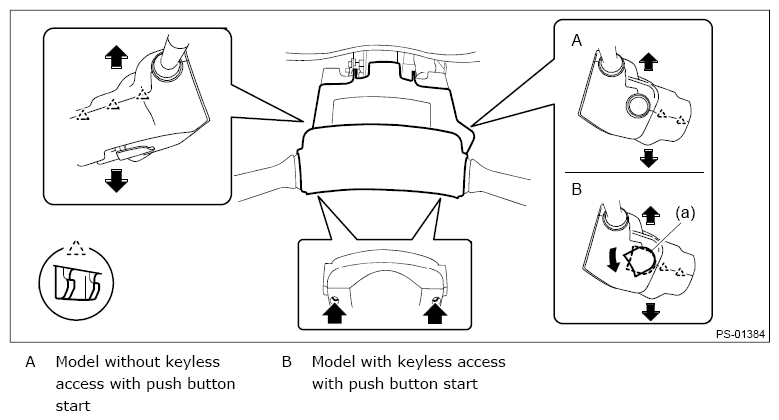

    Fig 1: Removing Cover Assembly - Column
    G11268578Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the switch assembly - combination wiper select.
  1. Disconnect the connector.
  2. Release the claws, and pull out the switch assembly - combination wiper select.
CAUTION: Do not press the claws with excessive force. They may be damaged.
Fig 2: Removing Switch Assembly - Combination Wiper Select
G08314999Courtesy of SUBARU OF AMERICA, INC.
